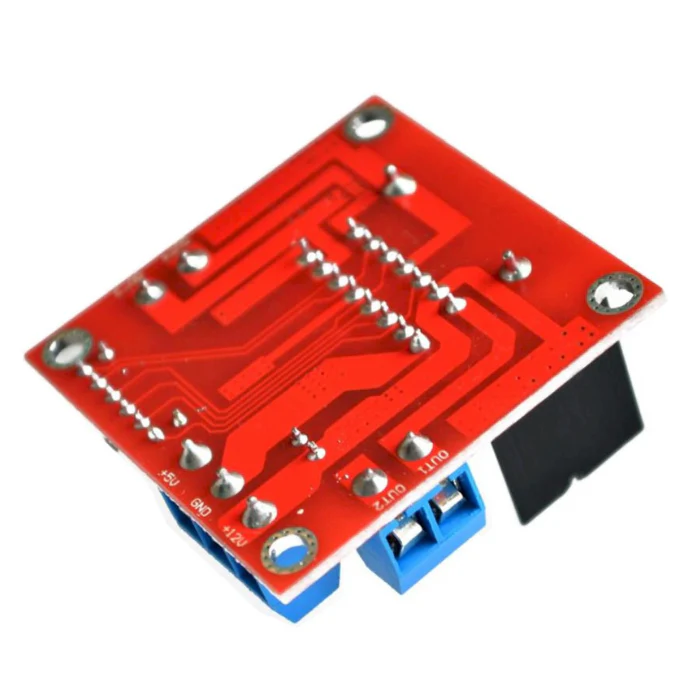

L298N 2A Dual H-Bridge DC Motor Driver Module for Arduino, Raspberry Pi & Robotics
The L298N 2A Dual H-Bridge Motor Driver Module is a high-performance motor driver designed to control two DC motors or one stepper motor with ease. Powered by the reliable L298N IC, this module allows you to control motor speed and direction using any microcontroller such as Arduino, Raspberry Pi, PIC, or ARM.
Perfect for robotics, automation, and mechatronics projects, the module includes an onboard 5V regulator, power LED indicator, and heat sink for long-lasting, stable performance.
Key Features
- Dual H-Bridge motor driver – controls 2 DC motors or 1 stepper motor
- 2A maximum current per motor channel
- Wide input voltage range: 5V to 35V
- Onboard 5V regulator (can power external circuits)
- Built-in heat sink for better thermal performance
- PWM compatible for speed control
- Direction control for both motors
- Power status LED indicator
- Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
How It Works
The L298N H-Bridge uses PWM (Pulse Width Modulation) to control motor speed. Longer pulse width = faster motor rotation; shorter pulse width = slower rotation. This provides smooth, precise, and efficient motor control — ideal for robotics and automation systems.
Pin Configuration
| Pin | Function |
|---|---|
| OUT1 / OUT2 | Motor A Output |
| OUT3 / OUT4 | Motor B Output |
| ENA | PWM/Enable for Motor A |
| IN1 / IN2 | Direction Control for Motor A |
| IN3 / IN4 | Direction Control for Motor B |
| ENB | PWM/Enable for Motor B |
| +12V | Motor Power Input (5V–35V) |
| GND | Ground (common with controller) |
| +5V | Logic Power Input or Output (depending on setup) |
Note: Ensure all grounds (Arduino, L298N, and power source) are connected for proper operation.
Technical Specifications
- Driver IC: L298N Dual H-Bridge
- Motor Voltage: 5V – 35V
- Logic Voltage: 5V
- Max Current per Channel: 2A
- Channels: 2
- Onboard 5V Regulator: Yes
- Current Sensing: Yes (per motor)
- Heatsink: Included
- Dimensions: 43 × 43 × 27 mm (approx.)
Applications
- Robotics and Autonomous Vehicles
- Smart Car and Line Follower Robots
- Stepper and DC Motor Control
- Automation and IoT Projects
- DIY CNC / 3D Printer Controllers
- Arduino and Raspberry Pi Experiments
Package Includes
- 1 × L298N 2A Dual H-Bridge Motor Driver Module (High-Quality)
Note
Product color or small components may vary slightly due to stock availability. Functionality and performance remain unaffected.
